Anchor agitator NC

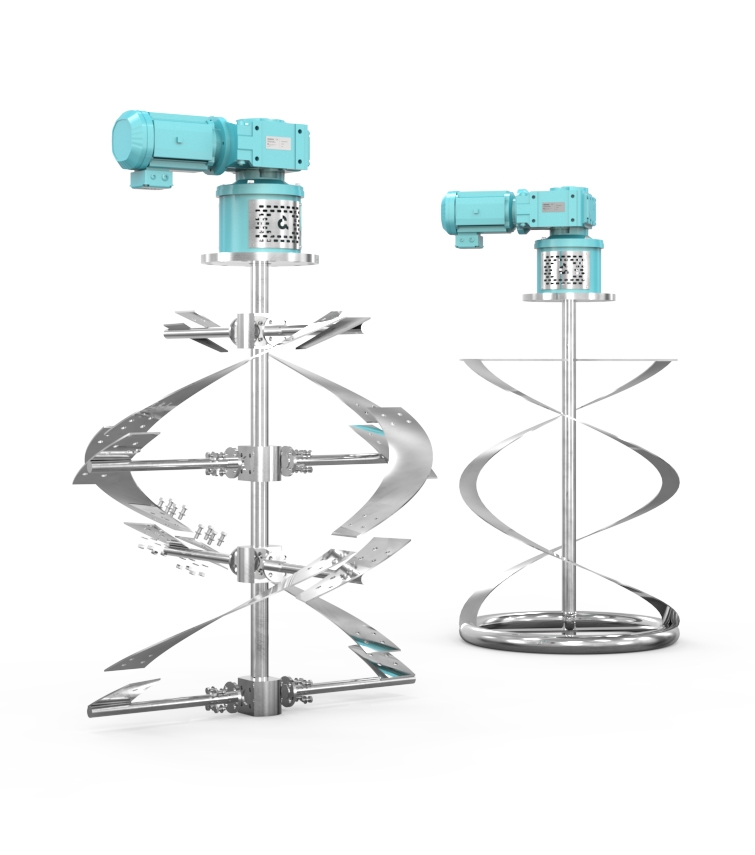

Helical NC(H) series

High efficiency on high-viscosity fluids

Helical NC(H) has a unique geometric form adaptable to the tank’s conditions that allow work in homogenization and heat transfer processes with high-viscosity fluids.

Being a band or helical ribbon agitator, it is a versatile and highly productive mixer because the impeller rotation generates a spiral recirculation flow, allowing homogeneous mixtures in a short time. Additionally, and for better results, it has the option of a second mobile.

Technical specifications:

Power: 2.2 - 45 kW.

Speed: From 5 - 60 RPM.

Shaft length: 1 000 - 9 000 mm.

Impeller diameter: Up to 6 000 mm.

Tank: 0.5 m³ to 90 m³.

Industries that use helical agitators NC(H)

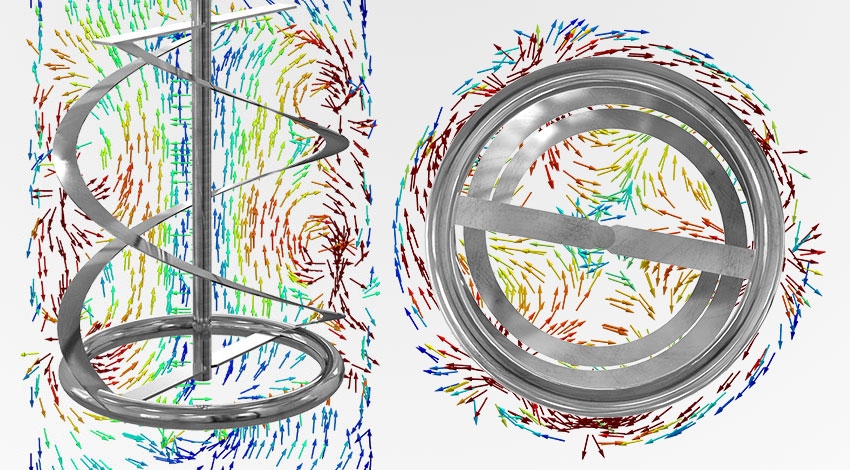

Flow lines with helical anchor



NC(H) helical anchor features:

Helical anchor agitators with a wide application diversity.

Unique geometry according to deposit.

Increase in pumping capacity by adding an additional mobile.

High efficiency in high-viscosity fluids.

Compatible additional impellers:

Gamma

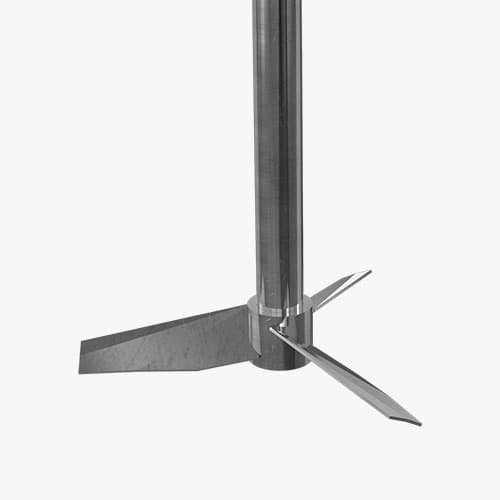

Stokes

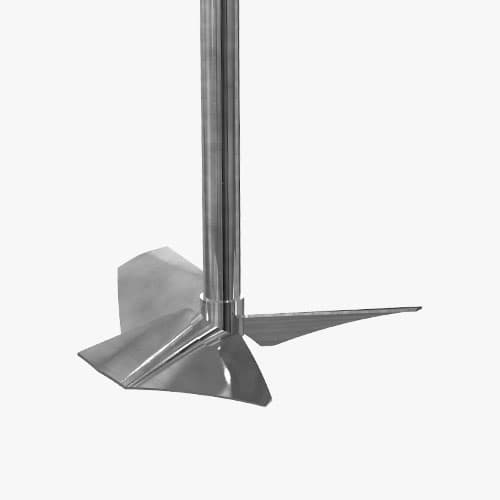

Nabla
Axial turbine
Radial turbine

Mounting options:

Flange
Flange_mounting type for industrial agitators.
Plate
Mounting option plate for industrial agitators.
Lantern
Mounting option lantern for industrial agitators.
Amplia gama de recubrimientos disponibles para agitadores industriales.

Finishes and coatings for your processes

PTFE

PVDF

EPDM

Halar

Butyl rubber

Natural rubber

Ebonite

Neoprene

Fiberglass

Manufacturing materials:

AISI 304

AISI 316

Carbon steel

Super duplex

Duplex

Titanium

Hastelloy

Uranus B6

Optional features:

ATEX protection

Stainless steel housing

Food grade oil

Food grade epoxy paint

Full tank disassembly system

Autonomous cooling system (thermosyphon)

Sealing options:

Cartridge seals

Cable gland

Double mechanical seals

Simple mechanical seals

Seals

Hydraulic labyrinth

More information about helical NC(H)

Why should you choose an Autmix Flow’s helical mixer NC(H)?

Custom design

International certifications

Guaranteed quality

Support and maintenance

Set up the perfect agitator for industrial processes

Set up your helical mixer NC(H)

Autmix Flow’s solutions are customized to the project specifications; fill out the form and design the anchor agitator you need.


Explore the gallery

Download the complete information

Brochure

Find out how industrial agitators work

Reduce your operating costs
